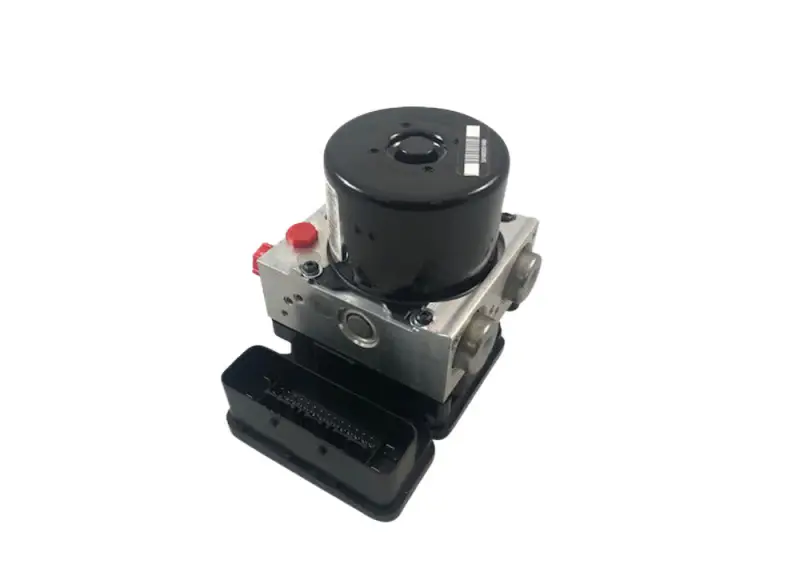

ABS Module ATE ABSOUT
Repair Service
Applications
Mitsubishi Outlander ZG - 4B12 I4 16V DOHC VVT 2005-2012
Mitsubishi Outlander ZH - 4B12 I4 16V DOHC VVT 2006-2012
Mitsubishi Outlander ZG - 6B31 V6 24V SOHC VVT 2006-2012
Mitsubishi Outlander ZH - 6B31 V6 24V SOHC VVT 2006-2012
OEM / Genuine Part Numbers
ATE
Common Faults
No communication with scan tool to ABS module
ABS traction light on instrument cluster
Fault codes related to pump voltage fault
Fault code C1073 - faulty motor drive circuit
Fault code C2116 - abnormality in power supply voltage in pump motor
Fault code C2104 - faulty valve power supply circuit
Fault code C1200 - wheel speed sensor signal open
Fault code C2200 - module internal error
Fault code P1773 - malfunction of ABS
Select Your Service Type
-
Repair
You send all components required for off-car testing, along with your diagnostic fault report
Repair Details
Warranty and returns: See Warranty Info
Melbourne Customers: You can drop off your part at our office for repair or exchange. Contact us for more details.
PLEASE NOTE: This is supplied as a repair service. You must send us your existing unit for repair. Each repair service includes an extended testing procedure normally valued between $295-$395.
- We will cover postage for sending the repaired unit back to you.
- This is a prompt test and repair service of the customer's own unit.
- There will be a $295 test fee in case the unit is deemed not repairable.
- ALL INSTRUCTIONS WILL BE PROVIDED ON CHECKOUT.
Critical Information
PLEASE REMOVE ANY MOUNTING BRACKETS FROM UNIT BEFORE SENDING IN. UNITS SENT WITH MOUNTING BRACKETS WILL INCUR EXTRA FREIGHT CHARGES
This is a test and repair service of the customers own unit
Before removing unit from the vehicle, check and record all fault codes. Supply these and any other diagnostic information when sending unit to PecTech.
Before removing pipes, clean all dust / grit off ABS module and pipes.
When pipes have been removed, seal all holes in ABS hydraulic block to ensure no dirt ingress.
ABS module must be left attached to hydraulic block and motor.
Pack unit very well to avoid damage during transportation.
