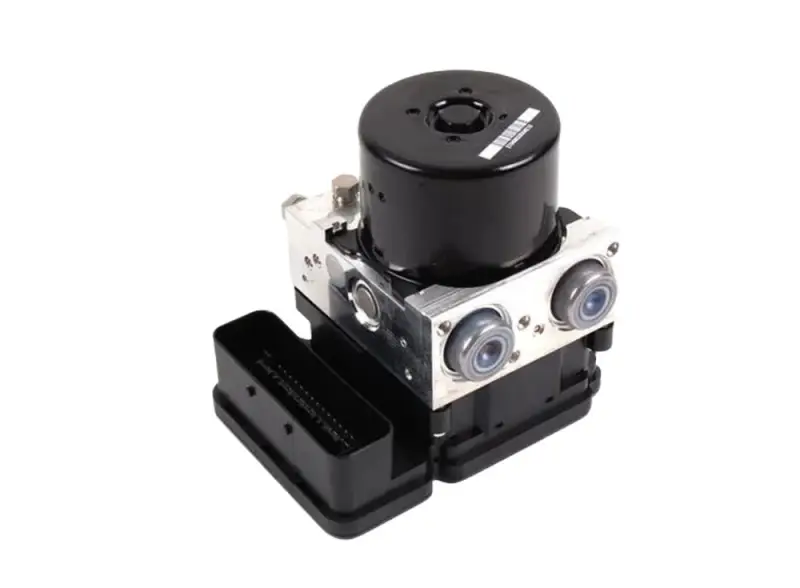

ABS Module ATE ABSSUZ
Repair Service
Applications
Suzuki Alto GF - K10BN I3 12V DOHC (2009-ON)
Suzuki Grand Vitara JT - M16A I4 16V DOHC VVT (2005-2008)
Suzuki Grand Vitara JT - F9Q I4 8V SOHC (2005-ON)
Suzuki Grand Vitara JT - J20A I4 16V DOHC (2005-2008)
Suzuki Grand Vitara JT - J24B I4 16V DOHC VVT (2008-ON)
Suzuki Grand Vitara JT - H27A V6 24V DOHC (2005-2008)
Suzuki Grand Vitara JT - N32A V6 24V DOHC VVT (2008-2012)
OEM / Genuine Part Numbers
ATE
Common Faults
ABS traction control lights on the dash
Fault codes related to pump motor fault
No communication between scan tool and ABS module
Fault code C1061 - Pump motor and/or Pump motor drive circuit malfunction
Fault code C1028 - Pressure sensor malfunction
Select Your Service Type
-
Repair
You send all components required for off-car testing, along with your diagnostic fault report
Repair Details
Warranty and returns: See Warranty Info
Melbourne Customers: You can drop off your part at our office for repair or exchange. Contact us for more details.
PLEASE NOTE: This is supplied as a repair service. You must send us your existing unit for repair. Each repair service includes an extended testing procedure normally valued between $295-$395.
- We will cover postage for sending the repaired unit back to you.
- This is a prompt test and repair service of the customer's own unit.
- There will be a $295 test fee in case the unit is deemed not repairable.
- ALL INSTRUCTIONS WILL BE PROVIDED ON CHECKOUT.
Critical Information
*Please note, C1043 & C1044 are common faults with these ABS units, however we cannot test or repair for these faults.
PLEASE REMOVE ANY MOUNTING BRACKETS FROM UNIT BEFORE SENDING IN. UNITS SENT WITH MOUNTING BRACKETS WILL INCUR EXTRA FREIGHT CHARGES
This is a repair service of the customers own ABS module
Before removing unit from the vehicle, check and record all fault codes. Supply these and any other diagnostic information when sending unit to PecTech.
Before removing pipes, clean all dust / grit off ABS module and pipes.
When pipes have been removed, seal all holes in ABS hydraulic block to ensure no dirt ingress.
ABS module must be left attached to hydraulic block and motor.
Pack unit very well to avoid damage during transportation.
