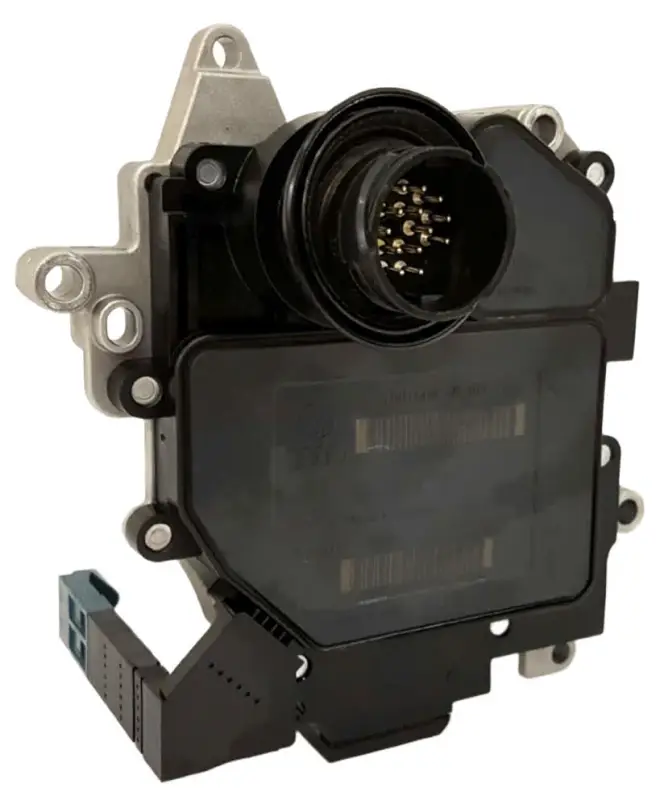

Transmission control 01J TCMVL3
Repair Service
Applications
Audi A4 B6 1.8L (2002-2005)
Audi A4 B7 1.8L (2004-2009)
Audi A4 B8 1.8L (2008-2012)
Audi A4 B6 2.0L (2001-2005)
Audi A4 B6 2.4L (2002-2005)
Audi A6 C5 2.4L (2002-2004)
Audi A6 C5 3.0L (2001-2004)
OEM / Genuine Part Numbers
01J
Common Faults
PRND lights flashing in dash
No gear selection
Inhibitor switch signal out of range
No reverse lights
Fault code 1790 / 1798 - Transmission range sensor malfunction
Fault code 1793 - Transmission output speed sensor malfunction
Fault code 18226 - Pressure control valve 2 malfunction
Fault code 18222 - Pressure control valve 1 malfunction
Fault code 18223 - Pressure control solenoid 1 short to battery positive
Fault code 18227 - Pressure control solenoid 2 short to ground
Fault code 18228 - Pressure control solenoid 2 short to battery positve
Fault code 18231 - Pressure control solenoid 3 malfunction
Fault code 18232 - Pressure control solenoid 3 short to ground
Fault code 18233 - Pressure control solenoid 3 short to battery positive
Fault code 18236 - Pressure control solenoid 4 malfunction
Fault code 18237 - Pressure control solenoid 4 short to ground
Fault code 18238 - Pressure control solenoid 4 short to battery positive
Fault code 18241 - Pressure control solenoid 5 malfunction
Fault code 18242 - Pressure control solenoid 5 short to ground
Fault code 18243 - Pressure control solenoid 5 short to battery positive
Fault code 17106 - Transmission speed sensor G195 No signal
Select Your Service Type
-
Repair
You send all components required for off-car testing, along with your diagnostic fault report
Repair Details
Warranty and returns: See Warranty Info
Melbourne Customers: You can drop off your part at our office for repair or exchange. Contact us for more details.
PLEASE NOTE: This is supplied as a repair service. You must send us your existing unit for repair. Each repair service includes an extended testing procedure normally valued between $295-$395.
- We will cover postage for sending the repaired unit back to you.
- This is a prompt test and repair service of the customer's own unit.
- There will be a $295 test fee in case the unit is deemed not repairable.
- ALL INSTRUCTIONS WILL BE PROVIDED ON CHECKOUT.
Critical Information
This is a test and repair service of the customers own unit.
Mechatronic Unit must be separated/removed from Valve Body, excess Transmission fluid cleaned and packed safely to avoid any physical damage during transit
Please ensure excess Transmission fluid cleaned and unit is packed safely to avoid any physical damage during transit
